Capacity: 12, 15, 18 kg

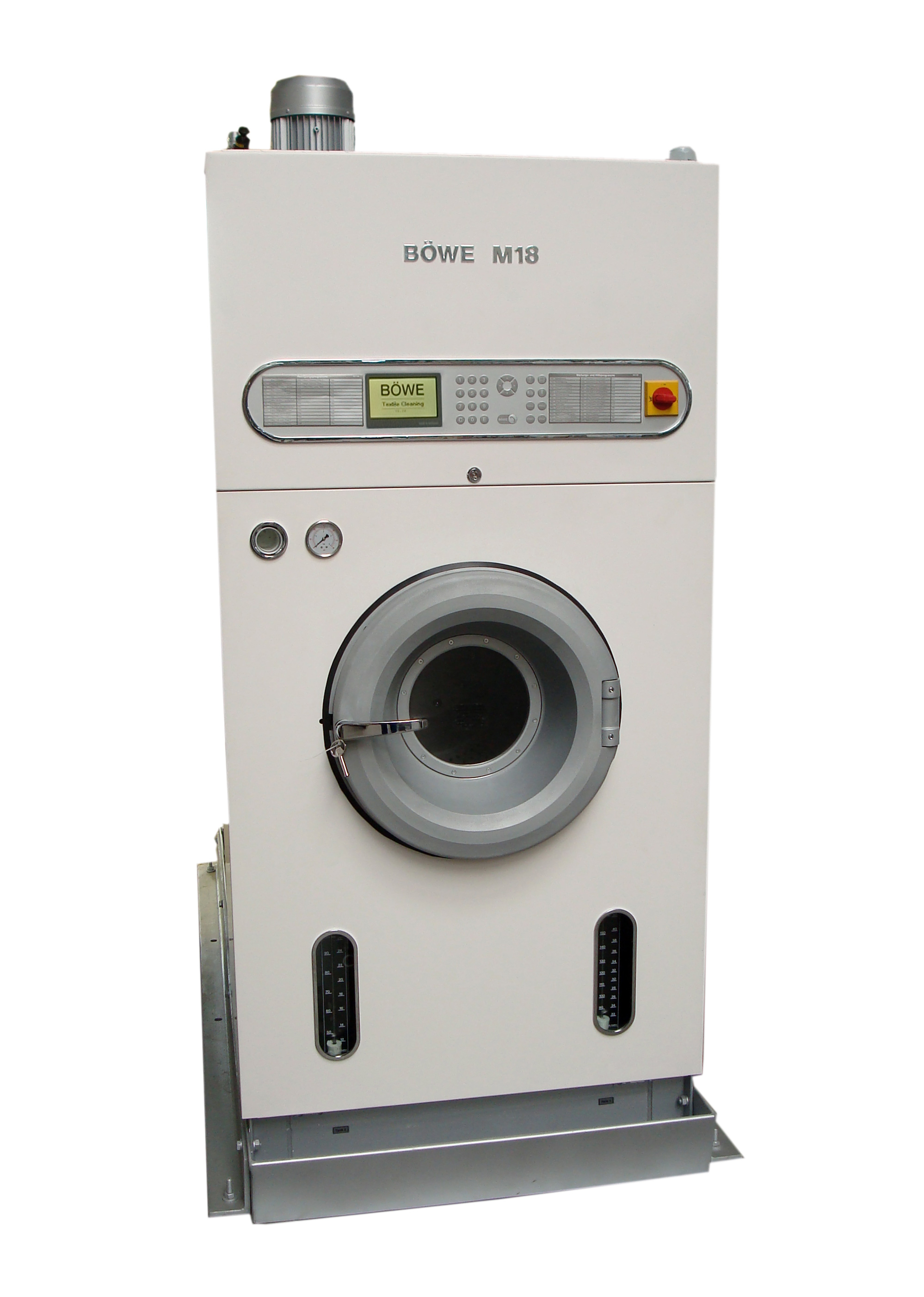

MultiSolvent® Drycleaning machines
Brand : Bowe  (Germany)
Model : M12, M15, M18


Basic Machines

Solvent    : Hydrocarbon and Cyclosiloxane (Silicone)

Heating    : External steam

Design     : Slimline (still behind the machine module)

Control    : Computer ConfoTronic PL with plain text display and comfort notes

System

• closed, "Dry-to-Dry" process
• 3 solvent tanks, self-cleaning, with new tank outlet
• Round shaped still for real fractional distillation, made of stainless steel, still rinsing, illumination, overfill preventer
• Refrigeration unit with scroll compressor and heat recovery

Filter        : Non-precoated eco extraction filter (17 filter discs)

Drive

• Frequency controlled variable speed drive up to a max. of 600 rpm
• Electronic Balancing System (EBS) to better level out unbalances

System features

•  Recovery section made of stainless steel, with flow optimized aerodynamic design and cleaning opening
•  SuperDry PDS+; drying time controller (volume measurement); patented dynamic cage perforation
•  Button trap (made of stainless steel) and large lint filter, combined in one maintenance opening
•  Lint drying in the button trap
•  Gentle drying and cooldown via refrigeration valves
•  Solvent cooling by refrigeration technique with aeroquip
•  High and low pressure gauge for refrigeration unit
•  Round stainless steel water separator with automated maintenance
•  Solvent level-sensor for high and low level
•  Dosing unit, precision controlled
•  Cooling water control, 1 for distillation and drying
•  3-sided panelling, white paint

Safety features

• Solvent safety trough
• Safety temperature limit switch
• Safety door lock for loading door
• Control switch for still and button trap
• Underlay rail for trough
• Cooling water shortage control

Features for extension

•  Computer prepared for ethernet card

Options

• Crossline design (still at the side of the machine module)
• Electric heats
• 2nd eco extraction filter
• Loading door venting

M12-18 (276 Kb.)
