Product | Drycleaning Machines : เครื่องซักแห้ง | BOWE | Perc: P12, P15, P18
Perc: P12, P15, P18
Capacity: 12, 15, 18 kg

Drycleaning Machines
Brand : BOWE  (Germany)
Model : P12, P15, P18

Basic Machines

Solvent    : Perchlorethylene

Heating    : External steam

Design     : Slimline (still behind the machine module)

Control    : Computer ConfoTronic PL with plain text display and comfort notes

  • closed, "Dry-to-Dry" process
  • 3 solvent tanks, self-cleaning, with new tank outlet
  • Round shaped still with rinsing and illumination
  • Refrigeration unit with scroll compressor and heat recovery
Filter    :  Non-precoated eco extraction filter (17 filter discs)

  • Frequency controlled variable speed drive up to a max. of 500 rpm
  • Electronic Balancing System (EBS) to better level out unbalances
System features
  • Recovery section made of stainless steel, with flow optimized aerodynamic design and cleaning opening
  • Still, ascending pipe and big condensor made of special stainless steel (AISI 316 Ti)
  • SuperDry PDS+; drying time controller (volume measurement); patented dynamic cage perforation
  • Button trap (made of stainless steel) and large lint filter, combined in one maintenance opening
  • Lint drying in the button trap
  • Gentle drying and cooldown via refrigeration valves
  • Water and safety (post) water separator made of stainless steel with large sight glasses
  • Automated rinsing pipes at the self-cleaning water separator
  • Dosing unit, precision controlled
  • Solvent level-sensor for high and low level
  • Cooling water control valve, 1 each for distillation and drying
  • High and low pressure gauge for refrigeration unit
  • 3-sided panelling, white paint
Safety features
  • Solvent safety trough
  • Safety door lock for loading door
  • Control switch for button trap and still maintenance door
  • Underlay rail for trough
  • Cooling water shortage control

Features for extension
  • Connection prepared for adsorption unit
  • Computer prepared for ethernet card

  •  Crossline design (still at the side of the machine module)
  •  Electric heats
  •  2nd eco extraction filter
  •  Loading door venting

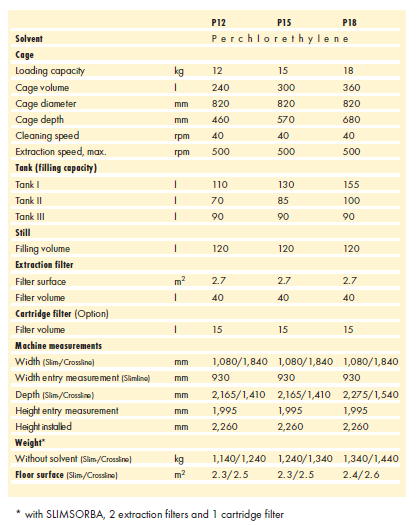

P12-18 (289 Kb.)
