Product | Washer Extractors : เครื่องซักผ้า | LAPAUW | 3 Pocket Washer Extractor


3 Pocket Washer Extractor
Capacity: 100, 160, 200, 300 kg

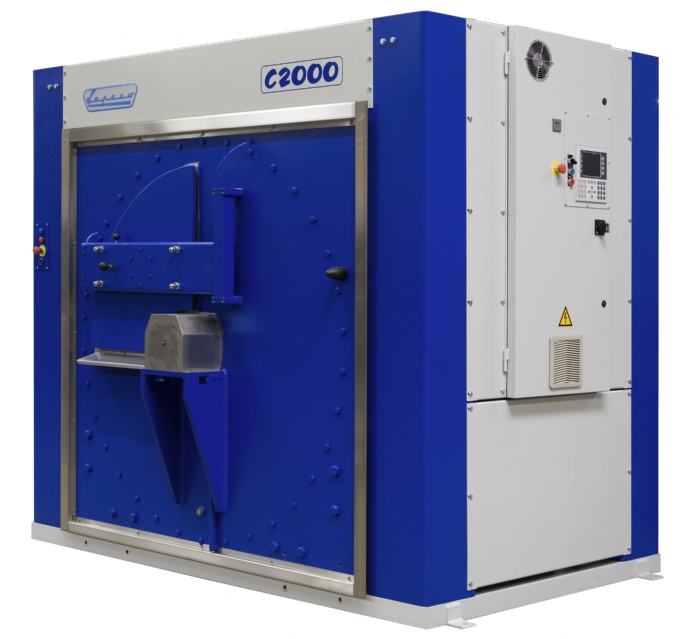

3 Pocket Washer Extractor
Brand : Lapauw (Belgium)
Model : Combi 1000, 1600, 2000, 3000


SPLIT POCKET ENHANCES SHEET WASHING EFFICIENCY
Due to the constant spinning in an Open Pocket washer, sheets get entangled. Certainly on the large drum volumes.
A split pocket washer separates the load in smaller batches and because of that, the sheets get less entangled.
This assures easier unloading and more efficient handling between washer and finishing line.

DRUM ACCESS : EFFICIENT LOADING AND UNLOADING
Drum access is one of the most important factors for a washer-extractor, as it defines how easy and fast a washer- extractor can be loaded and unloaded. For split pocket machines it is even more critical because you are working with relatively small compartments.
With 3000 and 3500 cm², the Combi 3-pocket line offers the largest access opening in the market.
The automatic drum positioning system provides optimal alignment for rapid loading and unloading.

LAPAUW SUSPENSION : NON-STOP WASHING
The drum is suspended in 4 points only. Specially designed double spring shock absorbers take care of both vertical and horizontal movements.
Not only a very simple and reliable system, a suspended, hanging drum, results in a natural balance, reducing unbalance problems even with heavy loads.

SEPARATED BEARINGS
The drum bearings are mounted outside and separated from the outer drum, assuring that any water coming from an eventual leak in the seals does not contaminate the bearing.

GREEN TECHNOLOGY : PREPARED FOR FUTURE WATER RECUPERATION
Every Lapauw washer leaves the factory already prepared for future water recovery.
The drain has a plug mounted on it that can be used to connect to a water recuperation system, whether it's new or existing. The microprocessor controller already has the necessary parameter sets to program and manage the recuperation process.
This gives the laundry manager a free choice to decide when to invest in a central or stand-alone water recovery system, the machine is already prepared for either option.
Lapauw also offers a broad range of options for water recovery and stand-alone solutions


Standard features
- Inner drum entirely in stainless steel - AISI304
- Outer drum entirely in stainless steel - AISI304
- All wetted parts in stainless steel – AISI 304
- Single motor , with variable speed drive
- heating : direct steam injection in drum
- automatic drum positioning system
- 2 water inlet valves
- 1 drain valve, large diameter.
All valves are air actuated
- 1 steam connection
- 4 product hoppers - tilting
- 1 connection plug for liquid detergent distribution system.
The product hoppers and connection plug can function simultaneously.

Microprocessor control
Allows the creation of up to 100 different washing programs, containing 10 steps each.
The large LCD touch screen facilitates programming and monitoring.

Machine complies to current CE standards

Supply voltage : 3 x 380-420VAC 50HZ +PE + N
                             3 x 440-480VAC 60HZ +PE + N


Options

 - Additional water inlet valve
 - Water flow meter

Water recovery options
A full range of options for the recuperation of water is possible
 - Recuperation tanks, mounted on top of the washer-extractor
 - Recuperation pump, for connection to an existing recuperation system in the laundry
