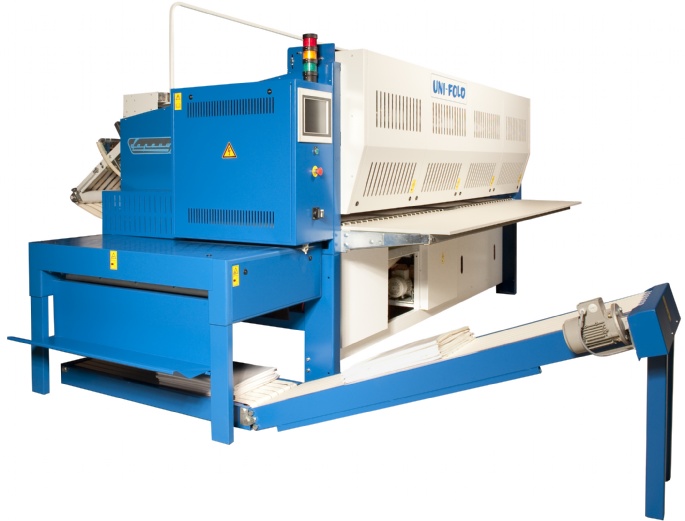

Folding Machine
Model : UNIFOLD
Brand : LAPAUW (Belgium)

STANDARD FEATURES

Primary Folding
- air Folding
- automatic selection of primary folds

Cross folding
- Knife folding
- Stacker with exit conveyor
Crossfold can be selected without stacker.

General
- exit table (500 mm)
- automatic speed synchronisation with ironer
- cotton conveyor bands, minimize static electricity.

Micro processor control
- microprocessor (B&R) with LCD colour touch screen
- integrated piece counter per lane

Available working widths
- 3300 mm
- 3500 mm
- 4000 mm
Other working widths also available on demand.

Supply voltage : 3 x 380-420VAC – 50Hz + PE + N
                             3 x 440-480VAC – 60HZ + PE + N
other voltages also available.

Machine complies to the current CE guidelines


THE ALLROUNDER
A folder for a high production line or do you need a primary folding only? Thanks to its modular design, the UNIFOLD offers you the possibility to select the folder that fits your requirements perfectly, yet keep a standard for all your ironing lines.

PRIMARY FOLDING : EFFICIENCY AND CONSISTENCY
The specially designed blow pipes assure a silent and powerful air blast. The multiple point air distribution system provides an uniform, powerful air blast, equally distributed over the full working width.

FIRST CLASS CROSS FOLDING
All 3 cross folds use knife folding as standard.
Two pinch rollers automatically adapt the first cross fold opening to the thickness of the linen. Pneumatic cylinders support the pinch rollers, which provides optimal counter pressure for the rollers to close just enough so that the linen does not shift or drop. This guarantees a care free operation with linen of any thickness or weight.

AUTOMATION AND FLEXIBILITY
The functions Automatic Lane Coupling for small piece primary folding and Automatic Fold Selection are standard features on the UNIFOLD.
This allows you to process a wide variety of items without the need for frequent program changes or even sorting before the ironing process.
