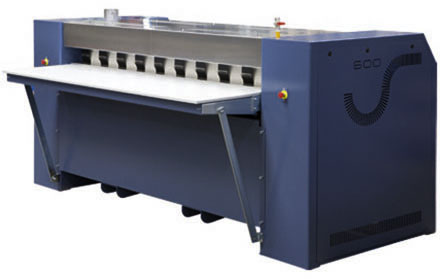

600, 800 mm roll diameter Ironer
Brand : Laco (Belgium)
600, 800 mm roll diameter Ironer
-
Straight Through Ironer
-
Production Capacity up to 175 kg/hr for 600 mm roll diameter Ironer
-
Production Capacity up to 260 kg/hr for 800 mm roll diameter Ironer
-
Available working width 1750, 2000, 2200, 2500, 3000, 3300 mm
-
Available in electric, gas, steam heating
-
Straight Through type
Heating principle: chest type heating
• The ironer incorporates a boiler with variable temperature control.
• The gas heated model (natural or LPG Gas), fan assisted "low NOX" gas burner fully
adjustable gas valve mounted directly onto thermal oil heat exchanger.
• The electrically heated model, electrical elements mounted directly onto thermal
oil heat exchanger.
• Heat exchanger fully insulated.
• Silent thermal oil circulation pump.
• Oil and expansion tanks.
• Variable thermostatic temperature and safety overheat controls.
• The steam heated model, direct steam from external supply.
Roll®
• Perforated steel roll with under springing and clothed with polyester felt 800g/m2.
• Suction through the roll to assist moisture removal
• Variable speed, frequency inverter drive.
• Fully enclosed planetary gearbox mounted directly onto the roll.
Flexible laser-welded bed®
• Single piece exing and self adjusting bed.
• The bed is heated by circulation of thermal fluid oil.
• Steam heated: direct steam injection.
• Fully adjustable bed to roll pressure (integral hydraulic pump).
