Capacity: 1050 kgs/hr (50% RM)

Steam Heated Ironer : 2 roll 1600 mm roll diameter
Brand : Lapauw (Belgium)

STANDARD FEATURES
- Hinged chest
- Hydraulic chest lifting system
- Lapauw individual springs
- Polyester needlefelt 18mm thick – 4000 gr/m²
- Single drive motor – with variable speed drive.
- Remote start-stop control system for padding.
- Propellor shaft
- Heated bridge between rolls

Available working widths
- 3300 mm
- 3500 mm
- 4000 mm
Other working widths also available on demand.

Supply voltage : 3 x 380-420VAC – 50Hz + PE + N
                             3 x 440-480VAC – 60HZ + PE + N
Other voltages also available.


Machine complies to the current CE guidelines


DIAM. 1600 MM : THE HEAVY DUTY MACHINE
With the 1600 mm roll diameter, Lapauw continues where the others stop.
The DUO Ø1600 steam ironer lends itself perfectly for the heavy duty ironing tasks, such as duvet covers or full cotton linen.

HINGED CHEST : THE TRUE FLEXIBLE STEAM CHEST
The biggest challenge for a steam heated flexible chest is steam pressure. High steam pressure will distort thin chests.
This is why Lapauw prefers the hinge system.
By using a hinge, we can use 2 separate parts of sufficient thickness to withstand the tremendous forces that exist with the steam pressures that are commonly used, while the hinge assures optimal flexibility.

100% CARBON STEEL PREVENTS ‘COLD SPOTS’ IN THE CHEST
Lapauw is the only ironer manufacturer that manufacturers his chests fully in high grade carbon steel.
With a heat conduction factor 4 times higher than stainless steel, a carbon steel chest propagates heat much faster. By using only carbon steel for its chests, Lapauw assures optimal heat distribution over the full ironing surface, preventing “cold spots”.

HYDRAULICS GUARANTEES A CONSISTENT IRONING QUALITY.
Unlike common flexible chest technologies that rely on pneumatics to lower and raise the roll, Lapauw uses hydraulics to lift the chest;.
The hydraulic system is fully integrated, giving you a fail-safe system, independent from any external source (air compressor).
This is how Lapauw guarantees you a consistent and reliable pressure between chest and roll.

MAXIMUM MOISTURE REMOVAL.
The bridge between the rolls on the 2-roll and 3-roll ironers is steam heated. This provides additional evaporation power to your ironer.

LAPAUW INDIVIDUAL SPRINGS : DESIGNED FOR SPEED
The thick, stitched padding is firmly held in place by the individual springs, assuring it does not shift of get damaged when the ironer runs at high speed.
With the Lapauw individual spring and stitched padding, the Lapauw ironer is prepared for the speeds of tomorrow.

CONTROL YOUR INSTALLATION AND OPERATIONAL COSTS
The 2-roll and 3-roll Lapauw ironers have a single drive motor. A propeller shaft between the first and second roll assures the speed synchronization.
The propeller shaft is easy to install and requires very little maintenance during the ironer’s life cycle.

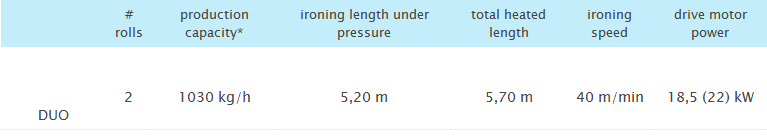

Steam Heated Ironer : 2 roll 1600 mm roll diameter

* Production capacity measured with following conditions :
  - single sheets - full cotton, with 50% Residual Moisture
  - 10 bar steam pressure
